[Ace Rossi]

Decided to just make one on my own.

Still not finished and I might have to cut more off the bottom to allow for more adjustment up and down but from what I’ve seen and cant acquire, I think this will work just fine!

These pics show it just mocked together until I get the correct bolts I want which are button heads because the heads will be under the foam and I want them as flat as possible. The toilet bolts work just like I want but being brass I don’t want to chance them breaking but they were all I had to piece it together until tomorrow.

I have easy vertical and horizontal adjustment.

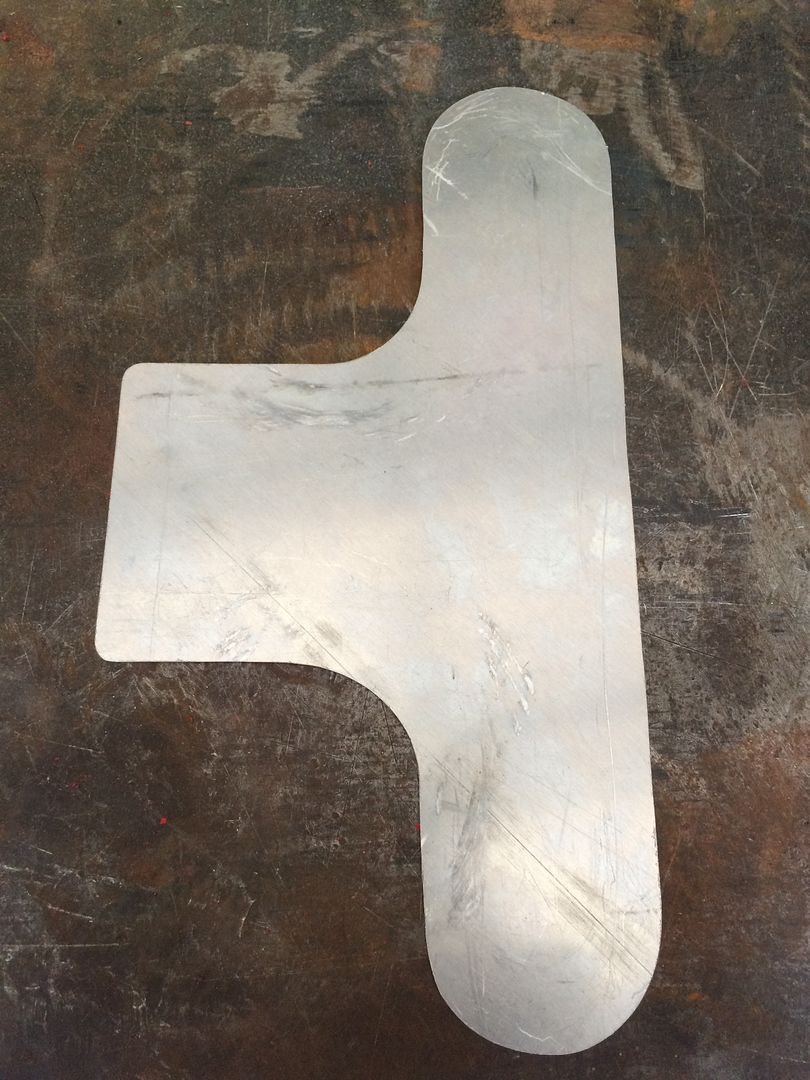

I made the plate from 0.90 aluminum which is rather stiff plus it’s mounted to the aluminum hoop.

The foam was twice this thickness and splitting it was a challenge but thanks to some redneck ingenuity, it came out pretty good.

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/D44950CA-70FA-4CC8-901F-8ACEB1983411.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/D44950CA-70FA-4CC8-901F-8ACEB1983411.jpg[/IMG][/URL]

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/DF340475-54C5-4F1C-943C-E9E0E1787AD7.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/DF340475-54C5-4F1C-943C-E9E0E1787AD7.jpg[/IMG][/URL]

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/13FEEFEE-D5C9-4562-A83C-EB89522D140A.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/13FEEFEE-D5C9-4562-A83C-EB89522D140A.jpg[/IMG][/URL]

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/7F403DEF-3D73-4E1B-AA61-B1F81DFEC64A.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/7F403DEF-3D73-4E1B-AA61-B1F81DFEC64A.jpg[/IMG][/URL]

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/EBCCCA6F-B26E-455E-BEAD-83C6AD0A192D.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/EBCCCA6F-B26E-455E-BEAD-83C6AD0A192D.jpg[/IMG]

[/URL]

Opinions please, good or bad! I need to know!

[Ace Rossi]

Got the button head bolts I needed today and installed the mounting plate to the hoop.

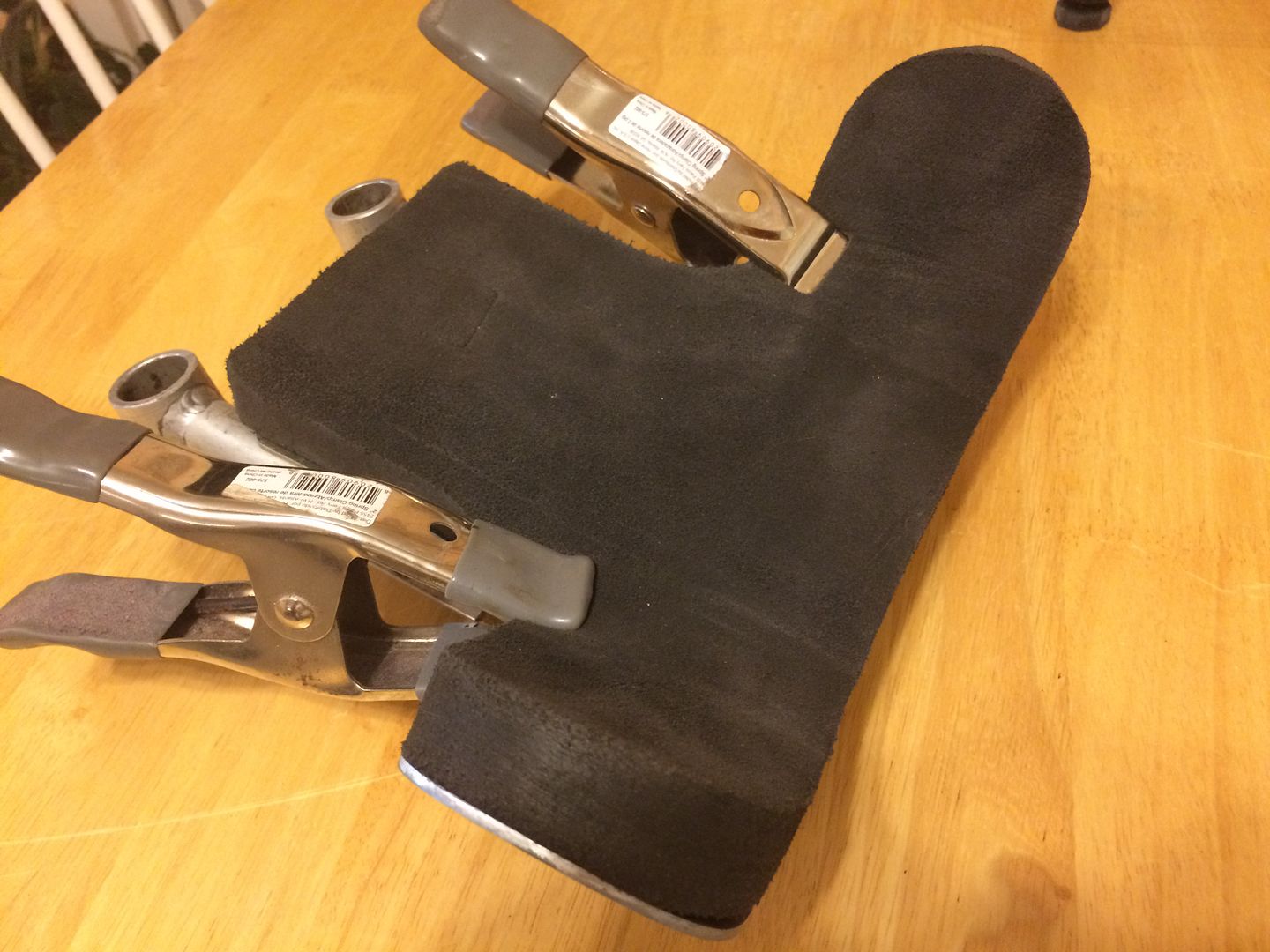

Glued the foam to the aluminum headrest backing plate and now we wait until sets up good before I finish sanding the foam to fit the backing plate.

After that, it’s time to mount it to the seat for a trial fit.

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/AD5ABCC5-2BC8-4445-9C22-90BAD0E284F5.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/AD5ABCC5-2BC8-4445-9C22-90BAD0E284F5.jpg[/IMG][/URL]

[Ace Rossi]

Headrest is mounted but final adjustment won’t happen until kart is back together. Total cost $4.50

Opinions please, positive or negative would really help.

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/E19371D4-4495-4914-82D6-0A26590C3D53.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/E19371D4-4495-4914-82D6-0A26590C3D53.jpg[/IMG][/URL]

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/519BC947-F1E8-4F33-B1F5-A4608B7868CE.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/519BC947-F1E8-4F33-B1F5-A4608B7868CE.jpg[/IMG][/URL]

[URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/3048C08A-11E0-4E79-889E-957569ADEB98.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/3048C08A-11E0-4E79-889E-957569ADEB98.jpg[/IMG][/URL][URL=http://s1203.photobucket.com/user/Goldbus/media/2015-08/E19371D4-4495-4914-82D6-0A26590C3D53.jpg.html][IMG]http://i1203.photobucket.com/albums/bb394/Goldbus/2015-08/E19371D4-4495-4914-82D6-0A26590C3D53.jpg[/IMG][/URL]









[Brian Wilhelm]

Nicely done, but if you have an “off” and bounce up and come down on it, I see pain.

[Ace Rossi]

I don’t really like pain so if you could enlighten me on what would make it better I would appreciate it .

thanks
