twin engine chassis

Bryan Araki · Posted: Tue Jan 08, 2008 8:49 am Post subject:

Twins are my dad's love. When my brother Glenn and I turned 16, we both started racing twins in sprint, dirt and enduro. There's nothing like a twin with B-Bomb 130s waiting to explode at over 100mph.

_________________
Bryan Araki
Graphix Plus
Clovis, California

Team PKS, Grand Products, Topkart, P1 Engines, Graphix Plus, RLV, Bell, Meclec Metal Finishing, Spy Optics, Espo Paint, Valens Collision Center, Region 7, Region 11, ProKart

MARC ZARTARIAN · Posted: Wed Jan 09, 2008 8:35 am Post subject:

Very Cool Bryan!!!

I remember that package.

We just build a purpose build twin chassis for fun.

I'll post a pic later today.

Marc Z.

Riley Will · Posted: Wed Jan 09, 2008 9:55 am Post subject:

Here is the TonyKart ICA Twin that I originally did and then Joey Guyon of Overdrivekarts.com redid with new bodywork. The engines are Rotax VME ICA's with Baroni BF24 carbs blueprinted by Overdrive.

_________________
Riley Will
BRC Engineering
rwill@brceng.com
(403) 216-0630 wk.
www.brceng.com

Brian Mead · Posted: Wed Jan 09, 2008 10:05 am Post subject:

Riley - Stunning piece of equipment. DD? Holy Gazookas!! How'd the thing run?

Riley Will · Posted: Wed Jan 09, 2008 10:36 am Post subject:

The handling was totally balanced and with a driver that was a mid pack club guy kept Alex Speed in an ICC behind him around Moran during some off season testing.......Let's just say it accelerates really well Shocked

those VME Rotax engines out of the box with a good carb would turn 20+K rpm....They kept taking rear gear off of it and going faster but also trying to keep the revs to no more than 18,500rpm.

We played with firing order being direct drive. A 180 degree firing made the kart more difficult to start as you were always pushing against a compression stroke. Vibration felt awkward while driving. It also oversteered WAAAAAY more off of turns....On the plus side the sound firing 180 degrees was incredible!!!

Firing in tandem like our 250cc twin cylinder engine gave maximum off corner thrust, started just like a standard ICA, vibration was ICA normal, and handling was better everywhere.

It is now being prepped to be a piece of Artwork on the owners living room wall Sad

_________________
Riley Will
BRC Engineering
rwill@brceng.com
(403) 216-0630 wk.
www.brceng.com

Riley Will · Posted: Mon Jan 14, 2008 2:40 pm Post subject:

Bill Pinzini's Twin

_________________
Riley Will
BRC Engineering
rwill@brceng.com
(403) 216-0630 wk.
www.brceng.com

MARC ZARTARIAN · Posted: Tue Jan 15, 2008 9:41 pm Post subject:

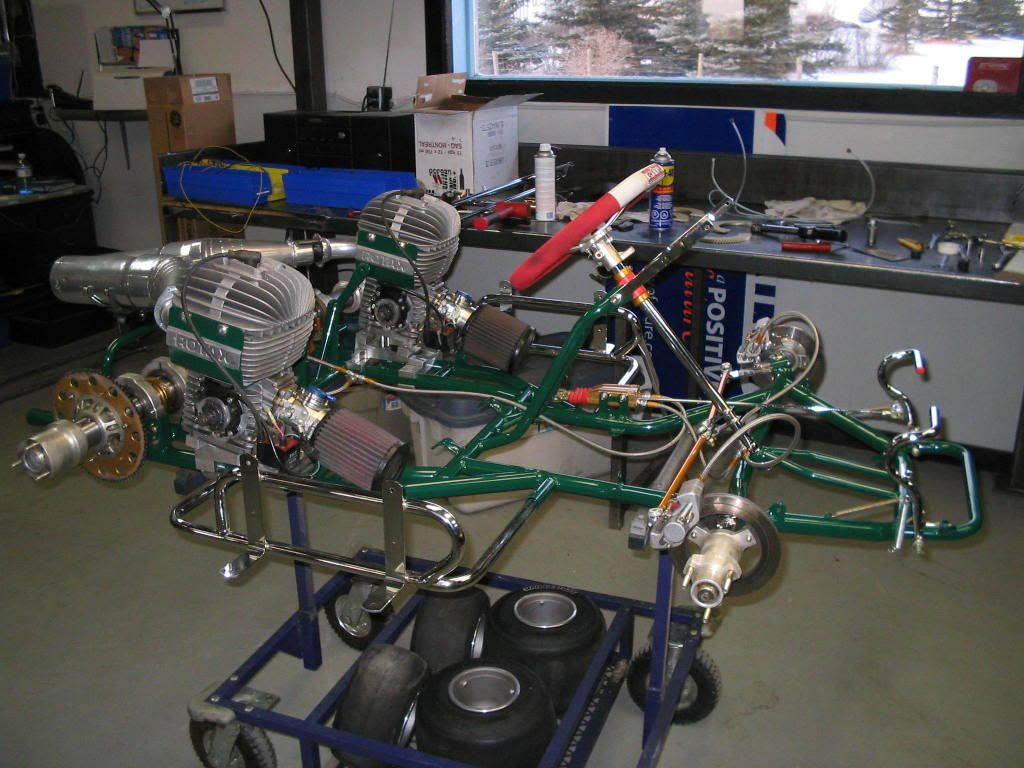

Check out our recently built twin. We will begin by mounting modified JICA engines

MARC ZARTARIAN · Posted: Tue Jan 15, 2008 9:44 pm Post subject:

Well, that di not work. - sorry Sad

I'll try again

MARC ZARTARIAN · Posted: Tue Jan 15, 2008 11:42 pm Post subject:

Ok, check this out.

Frank lowers · Posted: Tue Jan 15, 2008 11:49 pm Post subject:

Yea, now we are really in trouble.
_________________
-------------------------------------------------------
Your New Home of the Next Region 7
Parking Lot Track.

MARC ZARTARIAN · Posted: Wed Jan 16, 2008 8:27 am Post subject:

Yea Frank. I know what you mean - a twin chasis that can scale walls. What's next? LOL

Thanks, M.Z. Smile

Chuck McCue · Joined: 17 Jul 2001 Posts: 2944

OK, Marc. Attach 2 of these AIXRO 50 Wankel motors (100 HP!!) on that chassis and go beat up some FE and ICE's.

_________________
Chuck McCue

Kyle Kuntze · Posted: Wed Jan 16, 2008 8:54 am Post subject:

Hey Steve that #5 Banzai is still one of my dads favorite karts ever. He still talks about that kart Laughing

The pictures of him driving it around Long Beach are pretty cool too.
_________________
ART Grand Prix America Team Manager

artgpamerica@gmail.com

Moe Eldredge · Joined: 02 Sep 2007 Posts: 24

Those are awsome looking machines. I was wondering, are the frames built from scratch or are they single engine frames modified to accept the second engine on the left side Question
